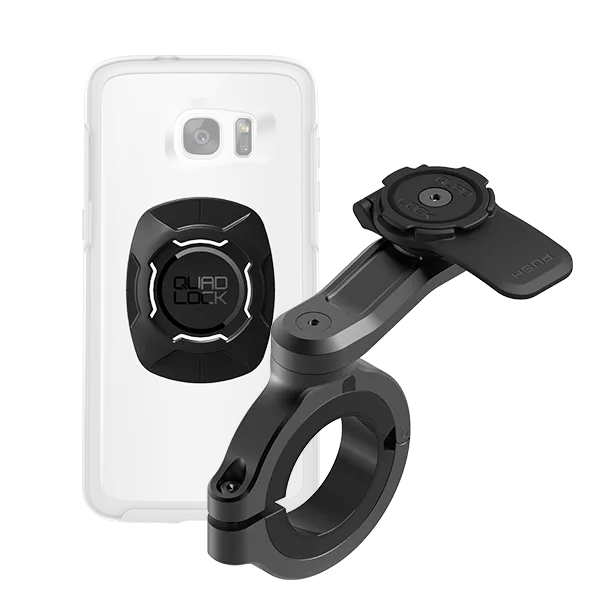

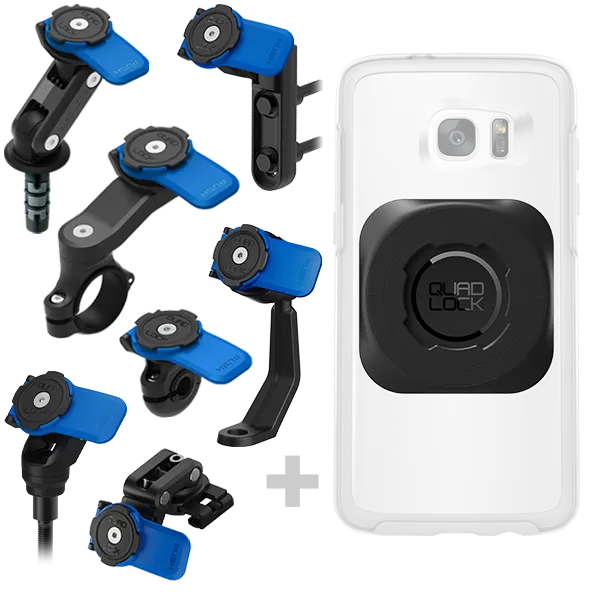

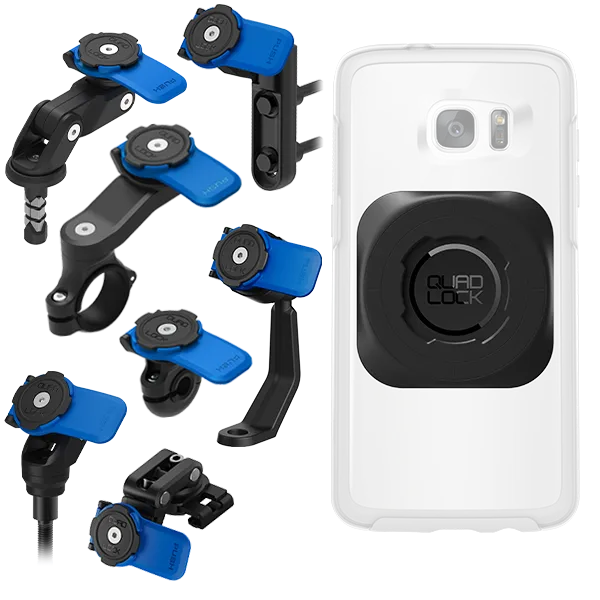

Motorcycle Kits - Universal Fit

• 3M™ VHB adhesive
• Slim profile (5.3mm thick or 13/64”)
• 60mm (2-3/8”) wide and 60mm (2-3/8”) tall
• Durable and tough composite construction
• Adheres to flat and slightly curved surfaces
• Compatible with Quad Lock® twist, lock mounts, heads, and accessories
• Compatible with Quad Lock MAG™ head

mag uni specs drawing

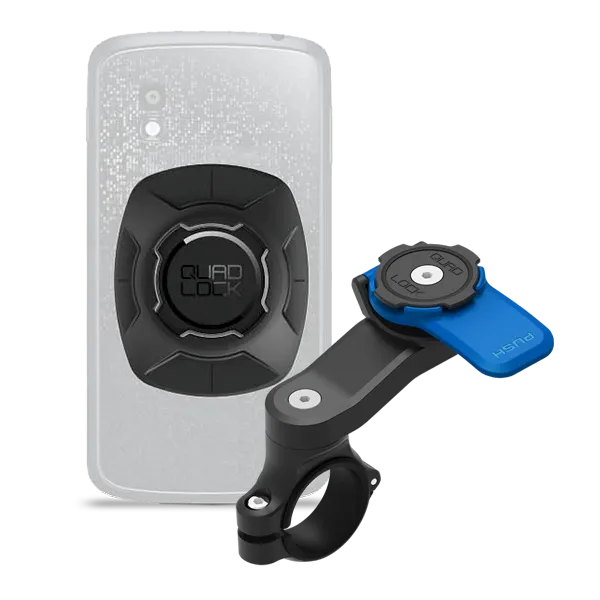

• 3M™ VHB adhesive
• Slim profile (5mm thick or 13/64”)
• 48mm wide (1-7/8”) and 60mm tall (2-3/8”)
• Durable and tough composite construction
• Adheres to flat and slightly curved surfaces
• Compatible with Quad Lock® twist, lock mounts, heads, and accessories

uni specs drawing

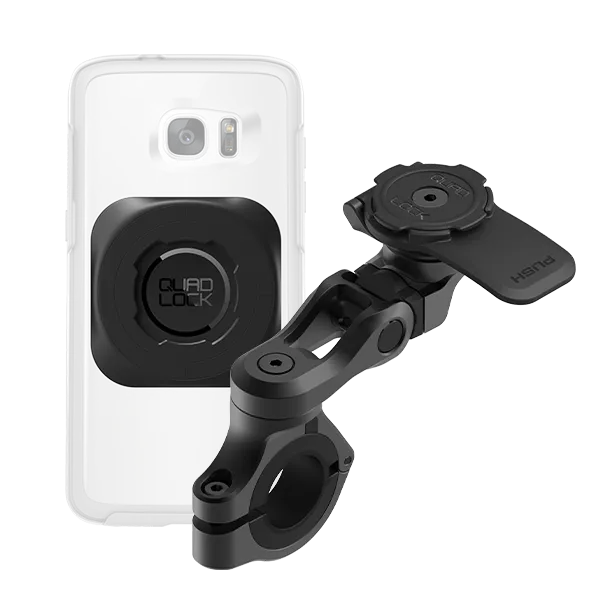

• Black anodised aluminium clamp and arm, made by precision CNC
• Assembled with black lever & hardware
• Fits handlebar diameters: 22mm, 25mm, 28mm, 32mm and 35mm (⅞", 1", 1-⅛", 1-¼" and 1-⅜”)
• Adjustable mount head for your ideal viewing angle, 360 degree rotation and up to 80 degrees of tilt
• Rotation and tilt set together with a single screw
• Preload tension holds the arm in position while you set your angle
• 360 degree arm rotation on the handlebar
• Discreet cable route for USB charge cables (remove plug in upper clamp to access)
• Dimensions: 108 x 68 x 88mm (4.25 x 2.68 x 3.46 in)
• Weight: 130g (4.6 oz)

Handlebar Mount PRO Adjustable - Dimensions

• Made from tough glass filled nylon
• Anti-rotation serrated bolt and spacers
• High tensile steel
• Replaces an existing M8 handlebar clamp bolt
• 135 degree knuckle angle adjustment without disassembly

Handlebar clamp specs

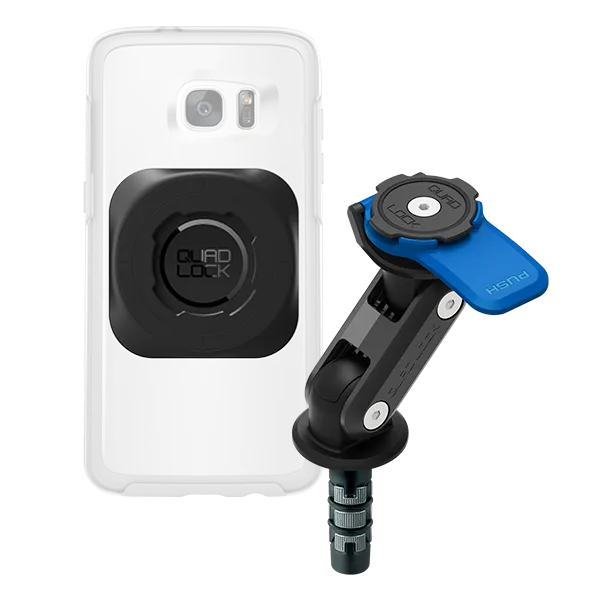

• Made from tough glass filled nylon
• Stainless steel hardware
• Fits tube sizes from 12.7mm (½”) to 25.4mm (1”) internal diameter
• Suits cylindrical tube stems where no lip is present
• Weight: 85g (3oz)

FSM tech specs

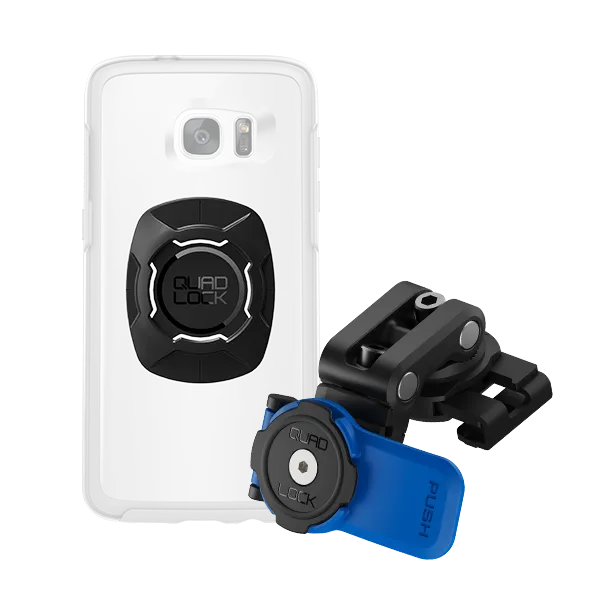

• Made from tough glass filled nylon
• Stainless steel pivot pins and threaded inserts
• Powder coated steel bracket
• High tensile steel fasteners with micro-encapsulated thread locker
• Mount hole pitch range from 1-½” (38mm) to 2-¾” (70mm)
• Multi-pivot arm adjustment and head tilt adjustment
• Lateral adjustment when mounted on small brake reservoir lids

Brake Reservoir tech specs

1 x Quad Lock MAG™ Universal Adaptor

OR

1 x Quad Lock® Original Universal Adaptor

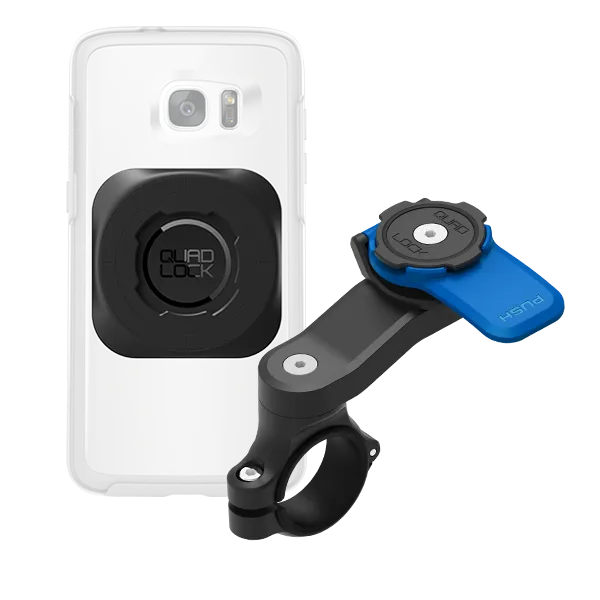

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Handlebar Mount Clamp
• 1 x Extension arm
• 3 x Bar spacers
• 1 x M5 x 35mm CSK hex socket screw (for Wireless Charging Heads)
• 1 x Allen (Hex) Key

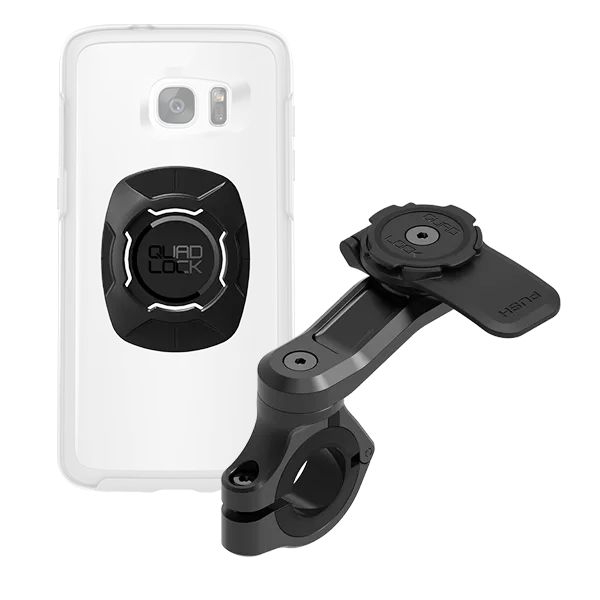

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Clamp
• 1 x Extension arm
• 4 x Bar spacers
• 1 x M5 x 35mm CSK hex socket screw (for Wireless Charging Heads)
• 1 x Allen (Hex) Key

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Clamp
• 1 x Adjustable Arm PRO
• 4 x Bar spacers
• 1 x M5 x 35mm CSK hex socket screw (for Wireless Charging Heads)
• 1 x Allen (Hex) Key

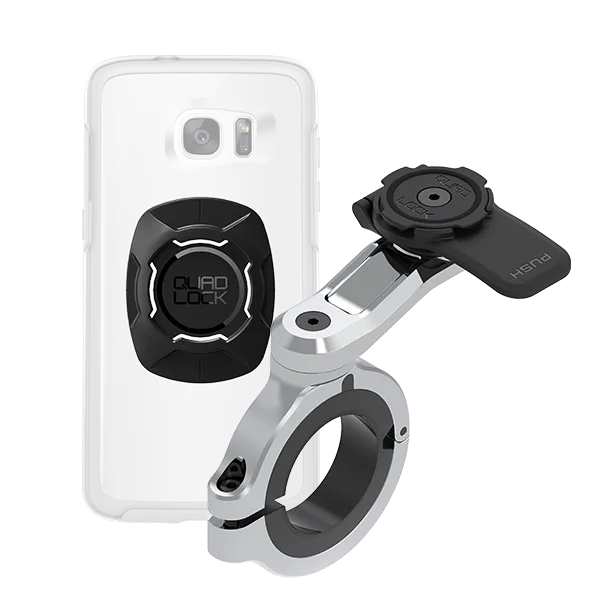

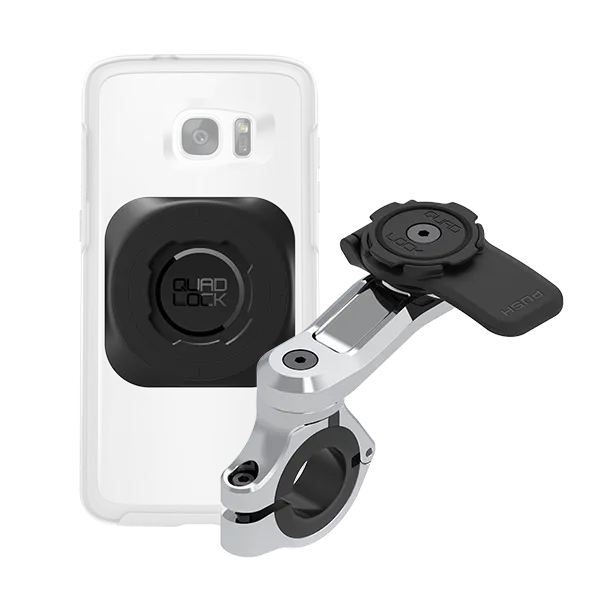

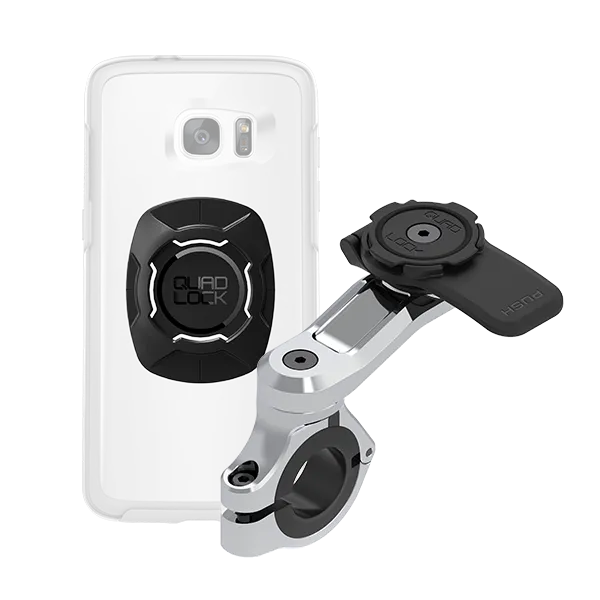

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Chrome Clamp
• 1 x Chrome Extension arm
• 4 x Bar spacers
• 1 x M5 x 35mm CSK hex socket screw (for Wireless Charging Heads)
• 1 x Allen (Hex) Key

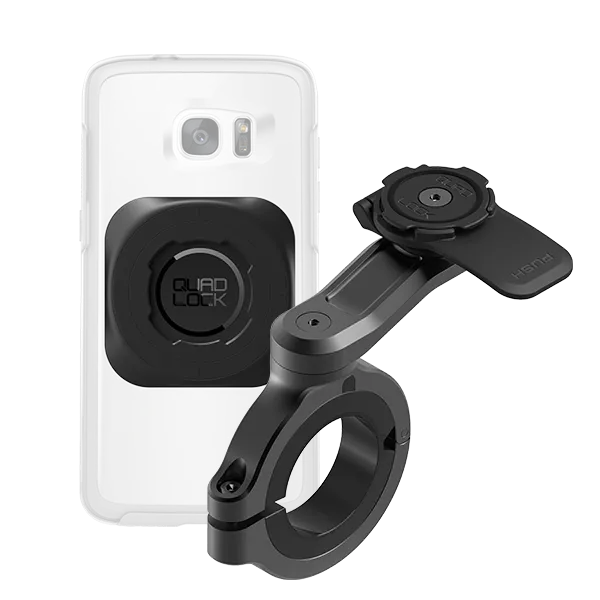

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Clamp - Large
• 1 x Extension arm
• 3 x Bar spacers
• 1 x Allen (Hex) Key

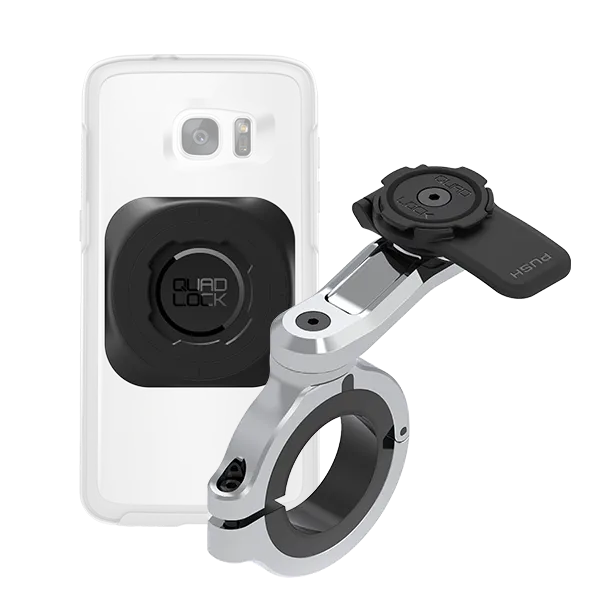

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Chrome Clamp - Large
• 1 x Chrome Extension arm
• 3 x Bar spacers
• 1 x Allen (Hex) Key

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Single Bolt - M8
• 1 x 5mm Serrated Spacer
• 1 x 10mm Serrated Spacer
• 1 x Offset Knuckle Adaptor
• 1 x Hex (Allen) Key

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Single Bolt - M8
• 1 x 5mm Serrated Spacer
• 1 x 10mm Serrated Spacer
• 1 x Offset Knuckle Adaptor
• 1 x Hex (Allen) Key

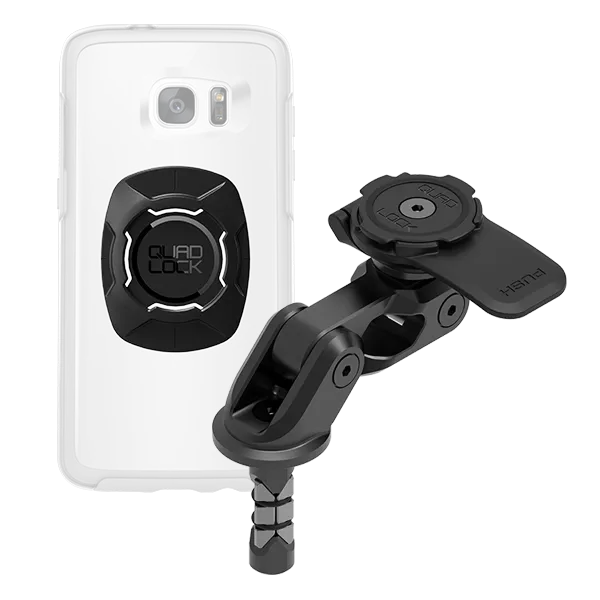

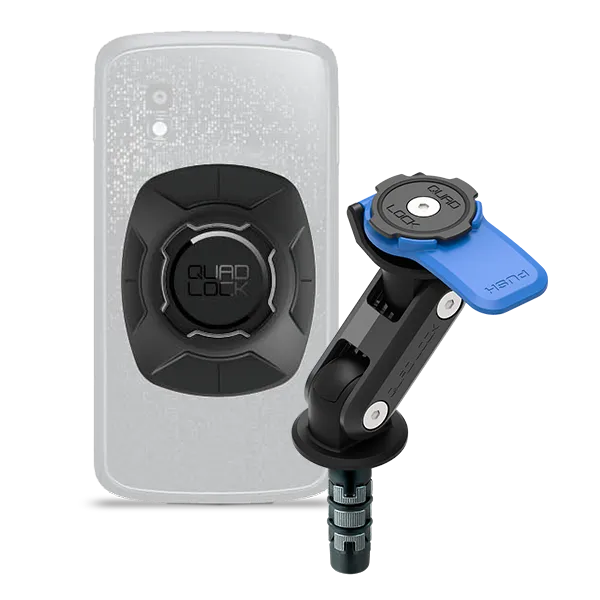

• 1 x Quad Lock® Index head (with blue lever)
• 1 x Quad Lock® Fork Stem Mount
• 2 x Expanding Spacers
• 1 x Allen (Hex) Key

• 1 x Quad Lock® Index head (with black lever)
• 1 x Quad Lock® Fork Stem Mount
• 2 x Expanding Spacers
• 1 x Allen (Hex) Key

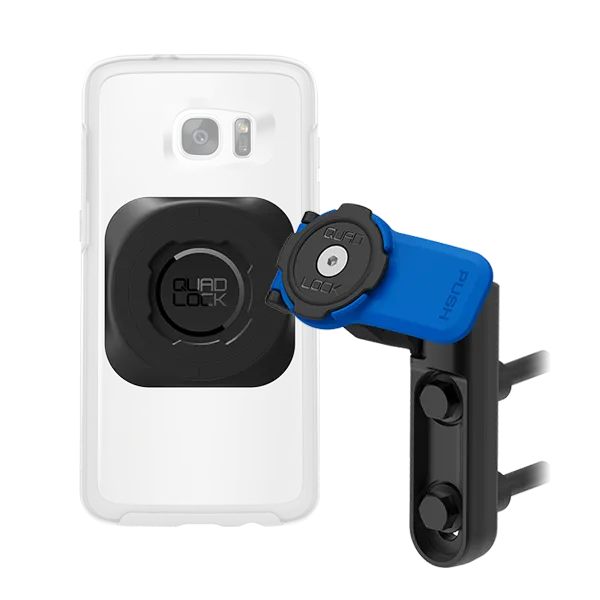

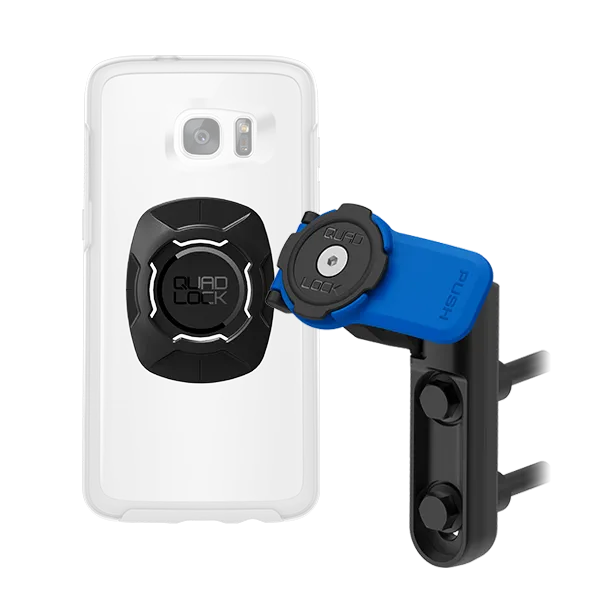

• 1 x Quad Lock® Brake/Clutch Mount
• 2 x M6 x 45 serrated flange bolts with thread locker
• 2 x UNC 1/4"-20 x 1.75 serrated flange bolts with thread locker
• 2 x spacers
• 1 x combination 3mm/4mm hex (Allen) key

• 1 x Quad Lock® Brake Reservoir Mount
• 2 x M4 x 16 CSK screws
• 2 x M4 x 18 CSK screws
• 1 x combination 3mm/4mm hex (Allen) key

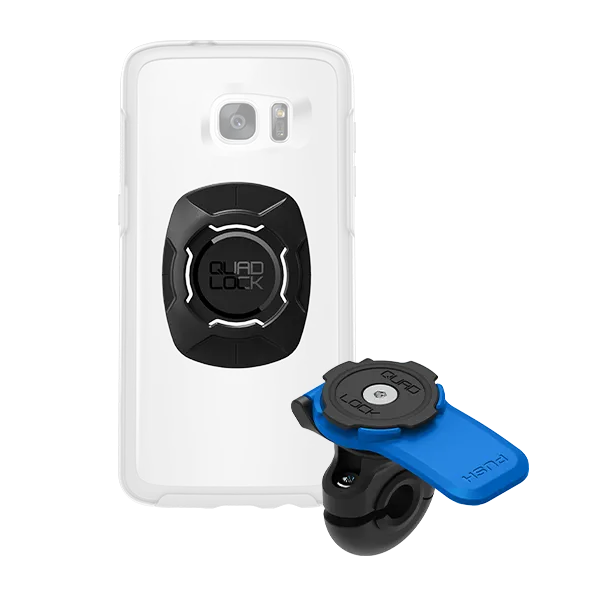

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Small Bar Clamp
• 3 x Bar Spacers
• 1 x Allen (Hex) Key

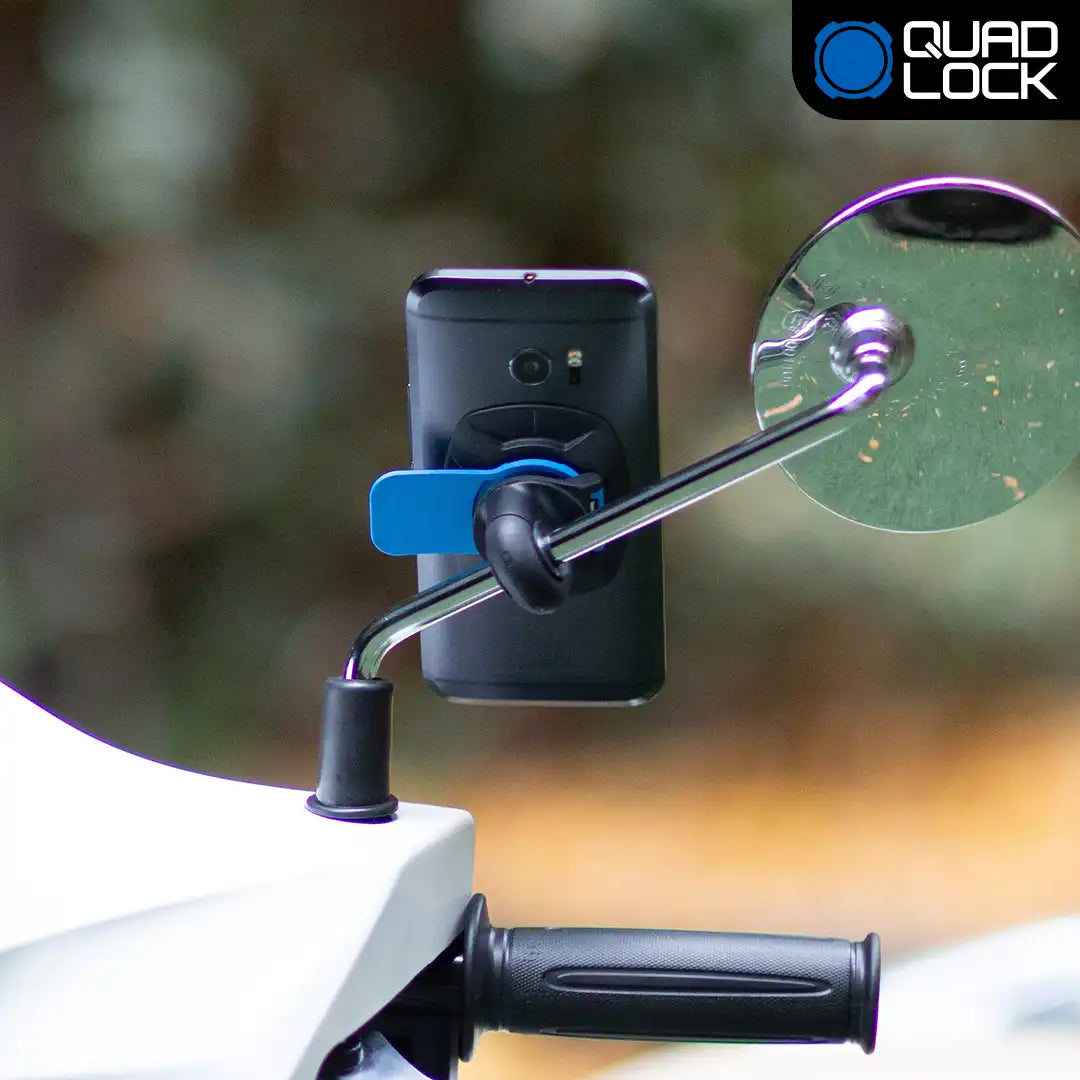

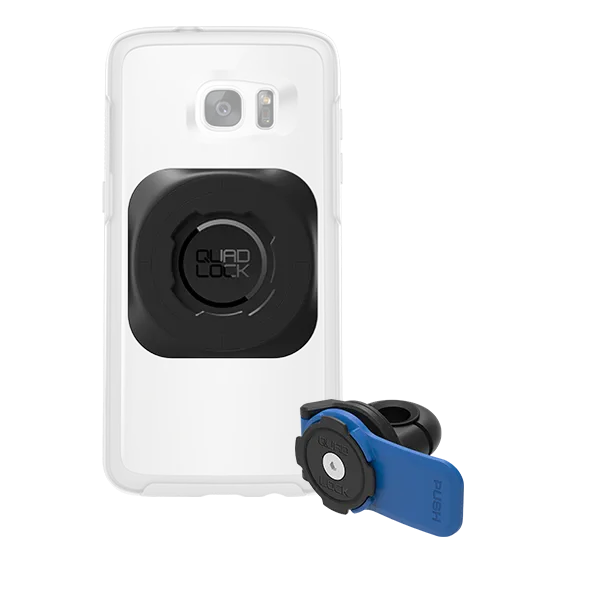

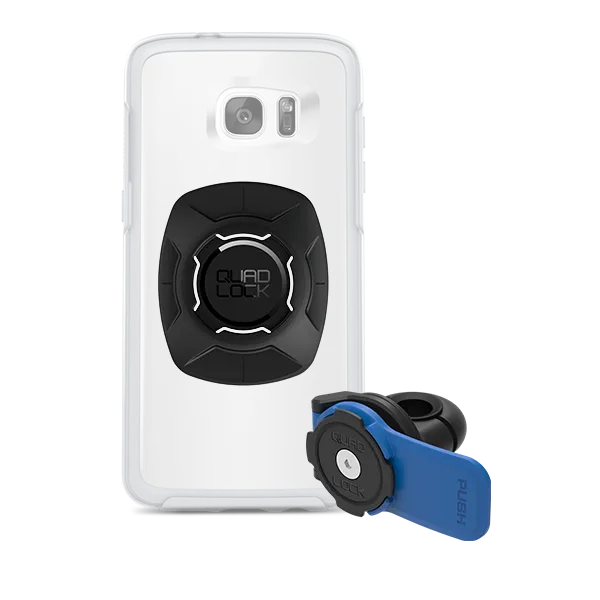

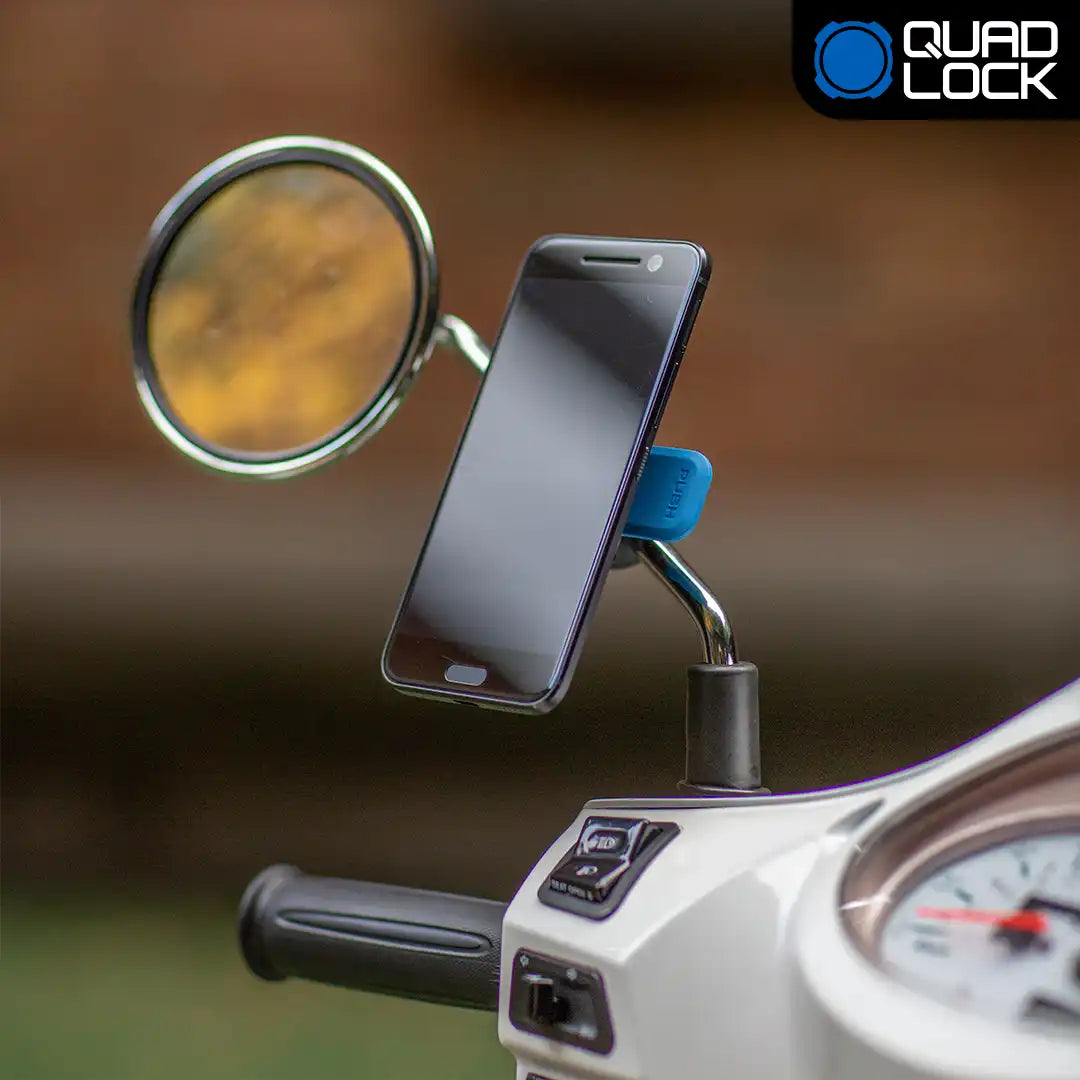

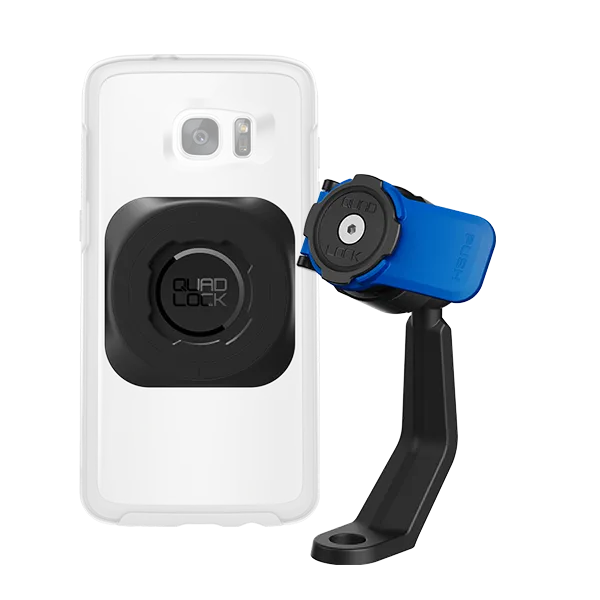

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Quad Lock® Mirror Stem Mount
• 1 x M8 Shoulder Washer
• 1 x M10 Flat Washer
• 1 x 3mm Hex (Allen) Key
