Cycling - Power Cables

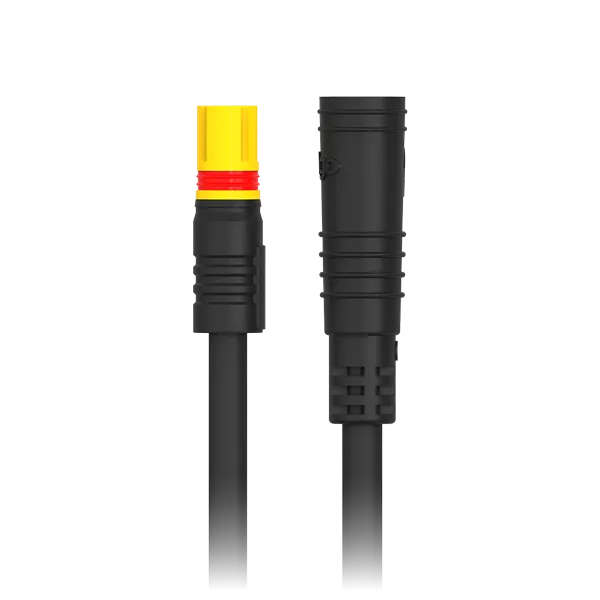

• For use with Quad Lock® Waterproof Wireless Charging Head to connect to compatible e-bikes
• IP67 connector
• 1.3m cable length
• Confirm cable length will be suitable for your e-bike if it is larger frame size or internal headset and cockpit cable routing
• Bosch cable length cannot be extended
• Bosch BES3 HPP connector
• Requires an available HPP port for connection to e-bike power
• Compatible with Bosch Smart System
• Recommended installation to be completed by a mechanic
• Weight: 15g (0.53 oz)

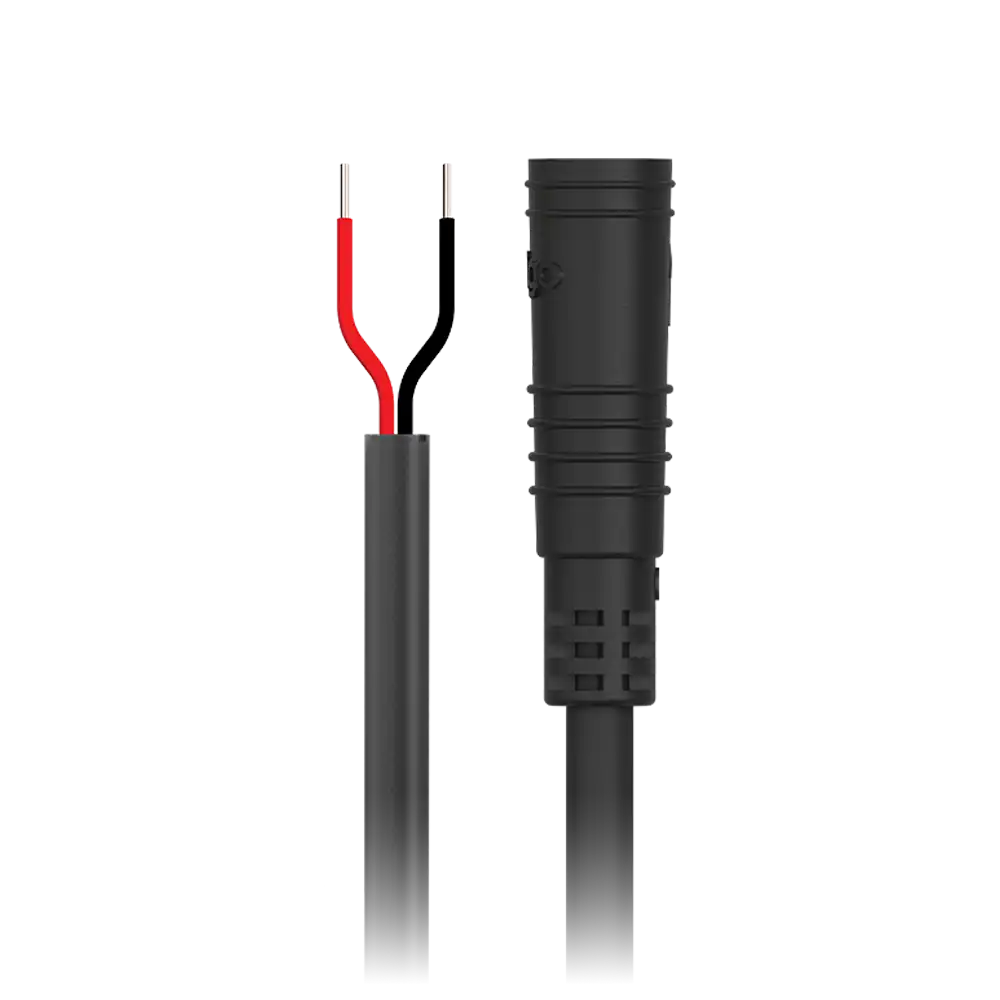

• For use with Quad Lock® Waterproof Wireless Charging Head to connect to compatible e-bikes
• IP67 connector
• 1.1m cable length
• Confirm cable length will be suitable for your e-bike if it is larger frame size or internal headset and cockpit cable routing
• Shimano cable may be extended by a professional a maximum of 250mm with own sourced suitable extension cable (22AWG thicker, 2-core insulated cable)
• Requires an available Accessory port on e-bike system. Do not share port with other accessories such as lights
• Do not connect directly to battery to avoid battery drain
• Recommended installation to be completed by a mechanic
• Weight: 26g (0.92 oz)

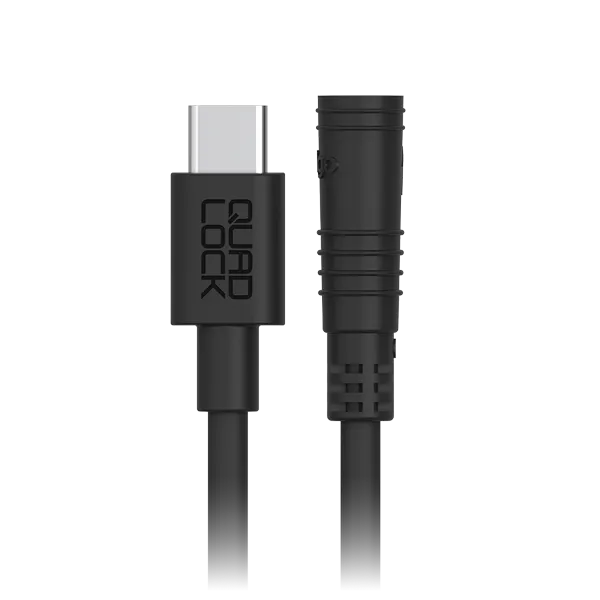

• For use with Quad Lock® Waterproof Wireless Charging Head
• Recommended power input: 9V/2A, 12V/2A
• IP67 rated connector*
• 1.1m cable length
• PD 3.0 compatible cable
• USB-C connector (input)
• Weight: 35g

*Compatible only with Quad Lock products displaying the Power Type 1 icon.

• 1 x 1.3m Bosch Smart System Power Cable

• 1 x 1.1m Shimano Power Cable

• 1 x 1.1m Power cable USB-C
